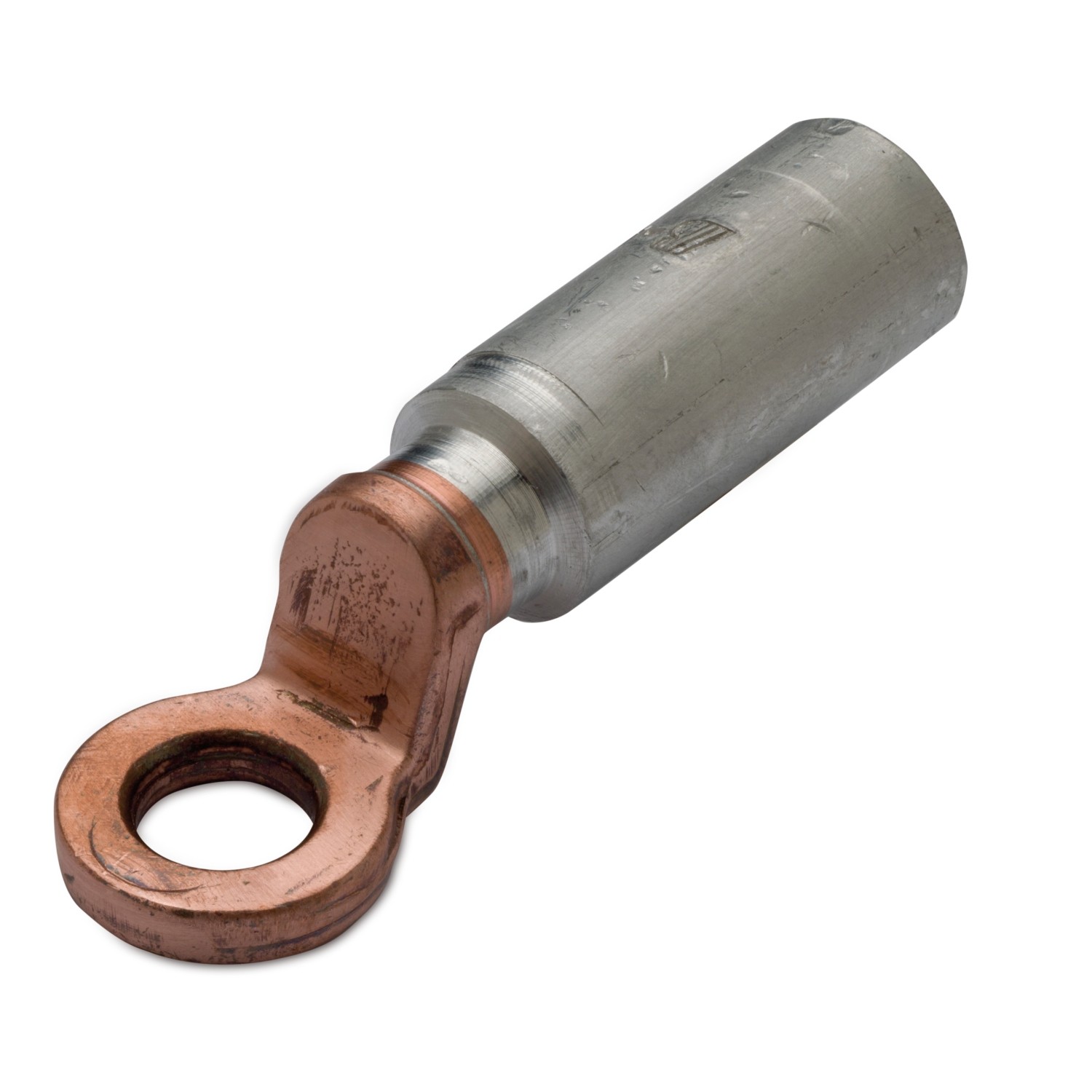

UNINSULATED · BIMETALLIC · RING (L.V. - M.V.)

cid 11TA08A

Product Category	terminal lungs
Palm material	copper 99.9%
Barrel material	aluminum 99.5%
Conductor cable material	L.V. and M.V. aluminium
Operating temperature	from -50 °C to +150 °C
Protection	the conductor housing is filled with grease (dropping point 90 °C) and plugged with a plastic cap to avoid oxidation.
Inspection hole	No
cid	11TA08A

Images with
dimensions

Item Code	Section [mm²]	Section [AWG/MCM]	For screw Ø screw [mm]	For screw Stud size	Indent	W1 [mm]	L1 [mm]	L2 [mm]	D1 [mm]	D2 [mm]	D3 [mm]	
70000	16	(6)	12	1/2"	15	22,5	87	47,5	16	5,6	13	10/10
70001	25	(4)	12	1/2"	15	22,5	87	47,5	16	6,6	13	10/10
70002	35	(2)	12	1/2"	20	25	88	47,5	20	8,2	13	10/10
70003	50	(1/0)	12	1/2"	20	25	88	47,5	20	9,2	13	10/10
70004	70	(2/0)	12	1/2"	20	25	88	47,5	20	11,2	13	10/10
70005	95	(3/0)	12	1/2"	20	25	88	47,5	20	12,7	13	10/10
70006	120	(4/0)	12	1/2"	25	32	113	64,5	25	13,9	13	10/10
70007	150	(300)	12	1/2"	25	32	113	64,5	25	15,7	13	10/10
70008	185	(400)	12	1/2"	32	35,5	118	64,5	32	17,2	13	10/10
70009	240	(500)	12	1/2"	32	35,5	118	64,5	32	19,7	13	10/10
70010	300	(600)	12	1/2"	32	35,5	145	90	34	23,3	13	10/10
