UNINSULATED · BIMETALLIC DIN 48201 · RING (L.V. - M.V.)

Product was successfully added to your shopping cart.

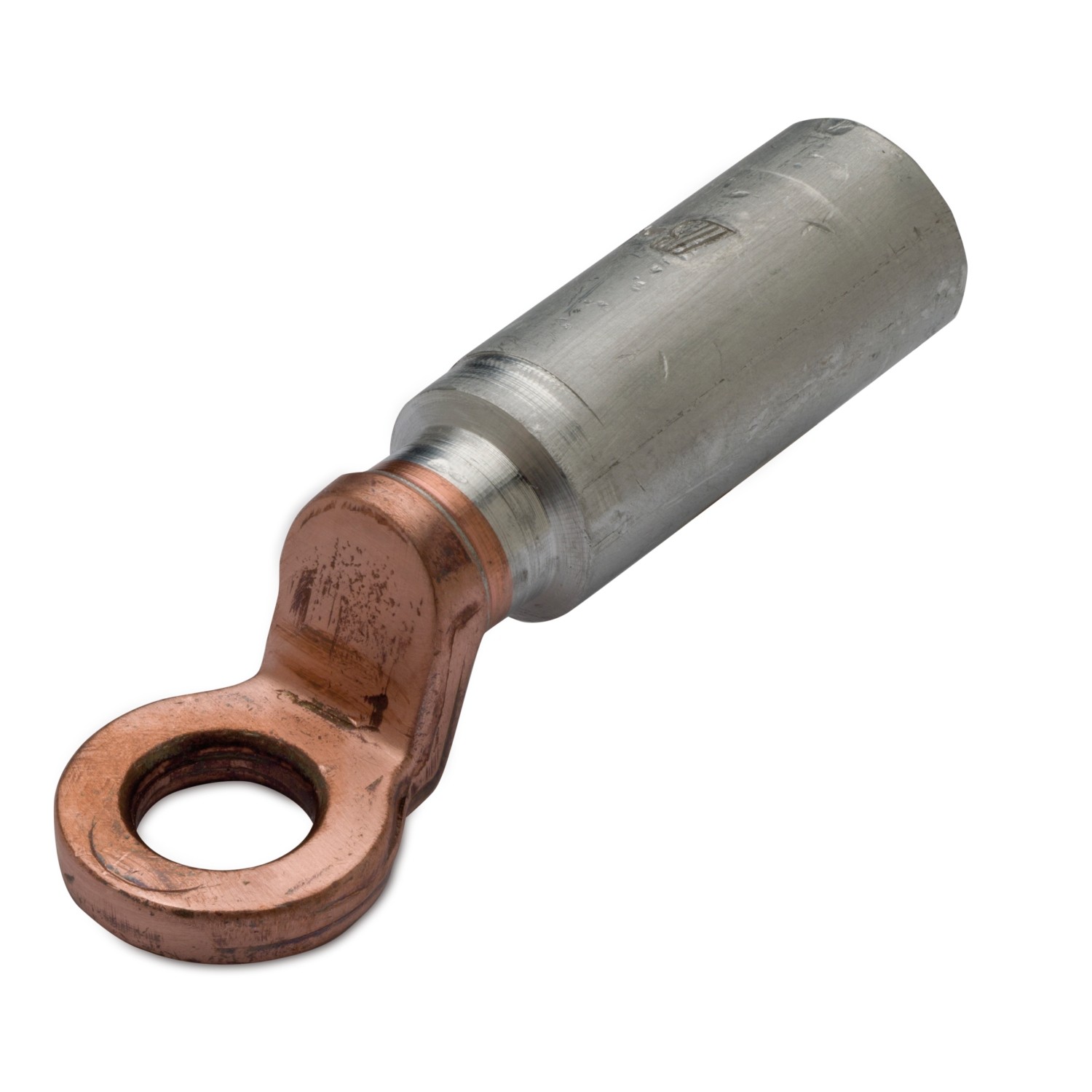

UNINSULATED · BIMETALLIC DIN 48201 · RING (L.V. - M.V.)

cid 11TA08B

UNINSULATED · BIMETALLIC · RING (L.V. - M.V.)

Product Category	terminal lungs
Palm material	copper 99.9%
Barrel material	aluminum 99.5%
Conductor cable material	L.V. and M.V. aluminium
Operating temperature	from -50 °C to +150 °C
According to std.	DIN 48201
Protection	the conductor housing is filled with grease (dropping point 90 °C) and plugged with a plastic cap to avoid oxidation.
Inspection hole	No
cid	11TA08B

Images with
dimensions

Coded items

Item Code	Section [mm²]	Section [AWG/MCM]	For screw Ø screw [mm]	For screw Stud size	Indent	W1 [mm]	L1 [mm]	L2 [mm]	D1 [mm]	D2 [mm]	D3 [mm]		Quantity per Wishlist
70602	35	(2)	12	1/2"	13	25	90	43	14	8	13	25/25
70603	50	(1/0)	12	1/2"	15	25	92	43	16	9,8	13	25/25
70604	70	(2/0)	12	1/2"	18	25	92	45	18,5	11,2	13	20/20
70605	95	(3/0)	12	1/2"	21	25	92	45	22	13,2	13	20/20
70606	120	(4/0)	12	1/2"	22	32	120	60	23	14,7	13	10/10
70607	150	(300)	12	1/2"	25	32	120	60	25	16,3	13	1/1
70608	185	(400)	12	1/2"	28	35,5	125	60	28,5	18,3	13	10/10
70609	240	(500)	12	1/2"	32	35,5	125	65	32	21	13	1/1
