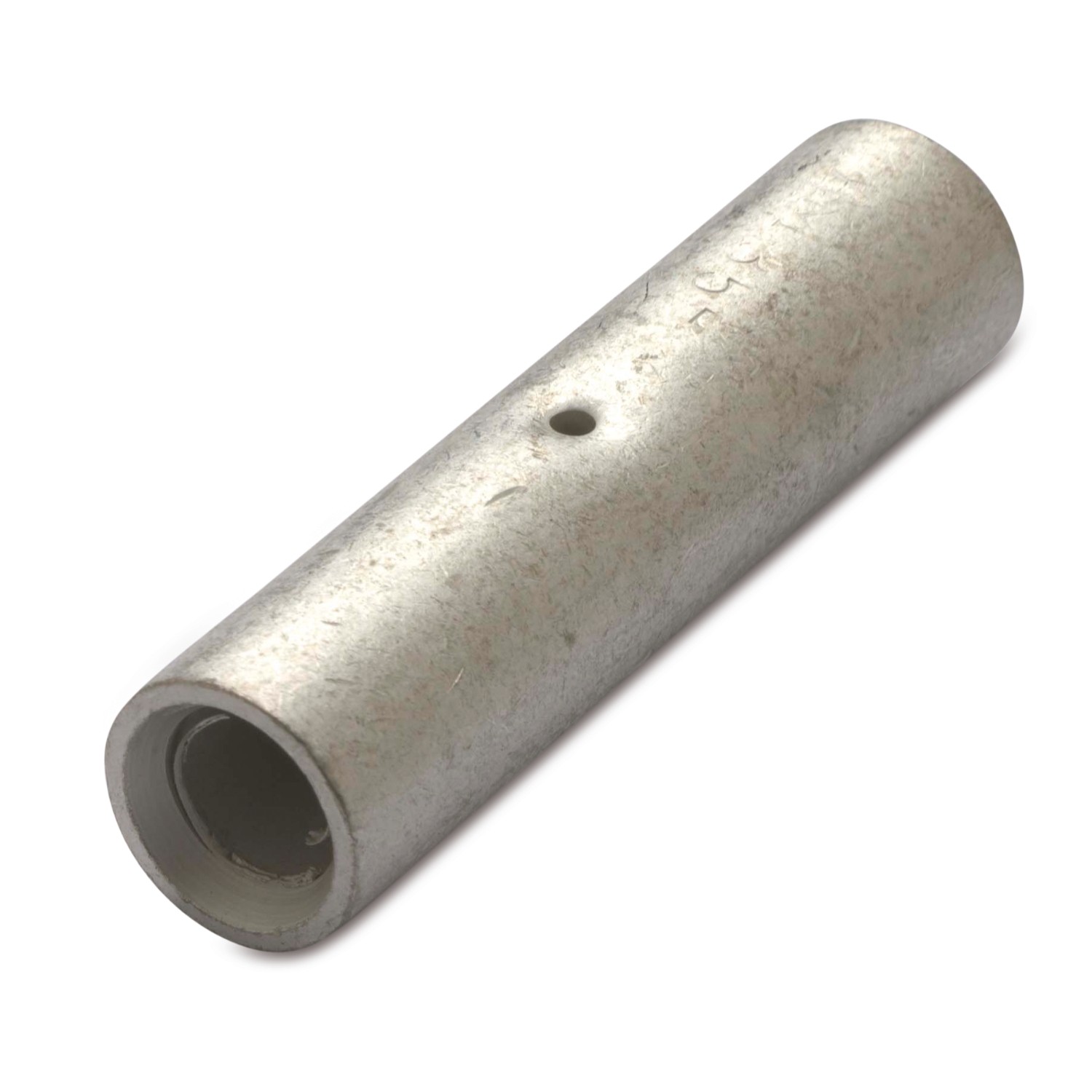

UNINSULATED BUTT CONNECTORS COMPLIANT WITH DIN 46267/1 (L.V.)

cid 11TF01C

UNINSULATED BUTT CONNECTORS (L.V.)

JOINTS FOR MEDIUM VOLTAGE COPPER CONDUCTORS (M.V.)

Product Category	butt connectors
Terminal material	tinned copper
According to standard	DIN 46267/1
Operating temperature	from -50 °C to +150 °C
Tipo	with central inspection hole and flush for a right insertion of the conductor.
Dimensions	compliant to DIN 46267/1 standard
cid	11TF01C

Images with
dimensions

Coded items

Item Code	Section [mm²]	Section [AWG/MCM]	Indent [mm]	L1 [mm]	D1 [mm]	D2 [mm]		Quantity per Wishlist
81460	10	(8)	6	30	6	4,5	100/100
81560	16	(6)	8	50	8,5	5,5	100/100
81660	25	(4)	10	50	10	7	100/100
81760	35	(2)	12	50	12,5	8,5	100/100
81860	50	(1/0)	14	56	14	10	50/50
81960	70	(2/0)	16	56	16	12	50/50
83160	95	(3/0)	18	70	19	13,8	25/25
83260	120	(4/0)	20	70	21	15,5	25/25
83360	150	(300)	22	80	23,5	17	25/25
83460	185	(400)	25	85	25,5	19	25/25
83560	240	(500)	28	90	29	21,5	25/25
