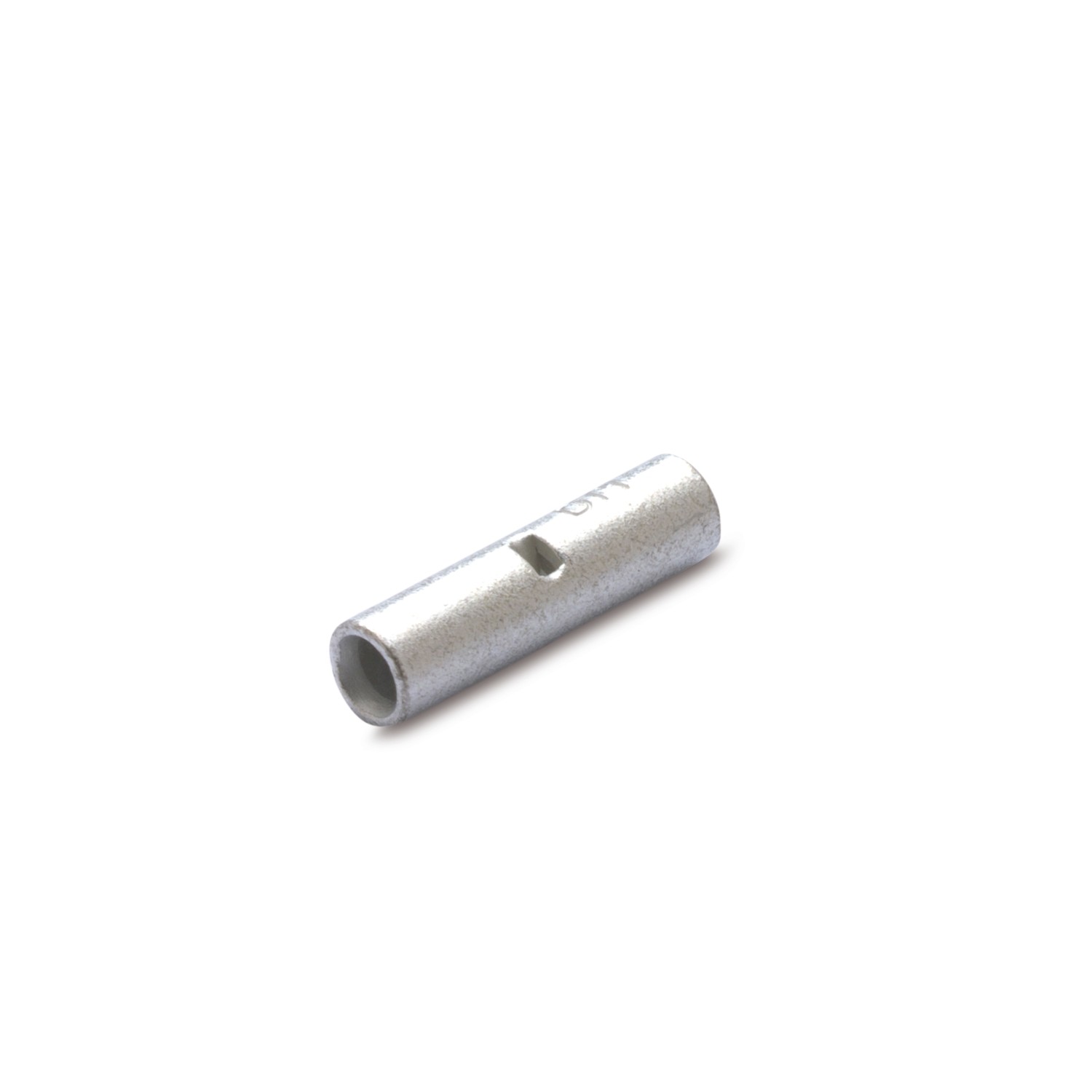

UNINSULATED BUTT CONNECTORS (L.V.)

cid 11TF01B

Product Category	butt connectors
Terminal material	tinned copper
Operating temperature	from -50 °C to +150 °C
Tipo	with central inspection hole and flush for a right insertion of the conductor.
cid	11TF01B

Images with
dimensions

Item Code	Section [mm²]	Section [AWG/MCM]	Indent [mm]	L1 [mm]	D1 [mm]	D2 [mm]	
01160**	0.25 ÷ 1.5	(22 - 16)		15	3,3	1,8	200/1000
01260**	1.5 ÷ 2.5	(16 - 14)		15	4,1	2,5	200/1000
01360**	4 ÷ 6	(12 - 10)		15	5,5	3,7	100/1000
01460**	10	(8)	7	25	7	5	100/500
01560*	16	(6)	7.5	28	8	6	100/500
01660*	25	(4)	9	28	9,5	7	100/300
01760*	35	(2)	11	36	11,5	8,5	100/300
01860*	50	(1/0)	12	36	13	10	50/50
01960	70	(2/0)	14	45	15	12	50/50
03160	95	(3/0)	16	46	17	13,8	50/50
03260*	120	(4/0)	18	50	19	15,5	50/50
03360*	150	(300)	20	60	21	17	25/25
03460*	185	(400)	22	64	25	19	25/25
03560*	240	(500)	25	73	27	21,5	25/25
03660*	300	(600)	28	75	30	24	25/25
03760	400	(800)	35	85	35	27	10/10
03860	500	(1000)	38	97	38	30	10/10
03960	600/630	(1250)	42	104	42	33,6	10/10
